VB/FP - Six-lobe handwheel (Pack of 10pcs and 4pcs) - Gamm

Name: VB/FP - Six-lobe handwheel (Pack of 10pcs and 4pcs) - Gamm
Brand: Gamm
SKU: 6114025
Price: 32.09 EUR
Availability: InStock
Rating: 5.0 (10 reviews)

Locking handwheels with brass bushing and threaded through hole. Made of heat-resistant black duroplast thanks to the material Phenolite™ (PF Phenolformaldehyde). Available in diameters from 40 mm to 70 mm and threads from M6 to M16. Compliant with REACH and RoHS regulations, ideal for industrial applications requiring high resistance and durability.

Volantino a sei lobi

Product SKU: 6114025

€32,09

(IVA/VAT incl.)

€26,3 (IVA/VAT escl.)

Quantity

Pagamento dilazionato solo per acquisti online

Se preferisci accettiamo anche bonifico bancario o carte

Want it delivered by

Description
Specifications

Locking Flyers

Brass compass and threaded through hole.

Material

Black Duroplast

VB/FP - Six-lobe flyer

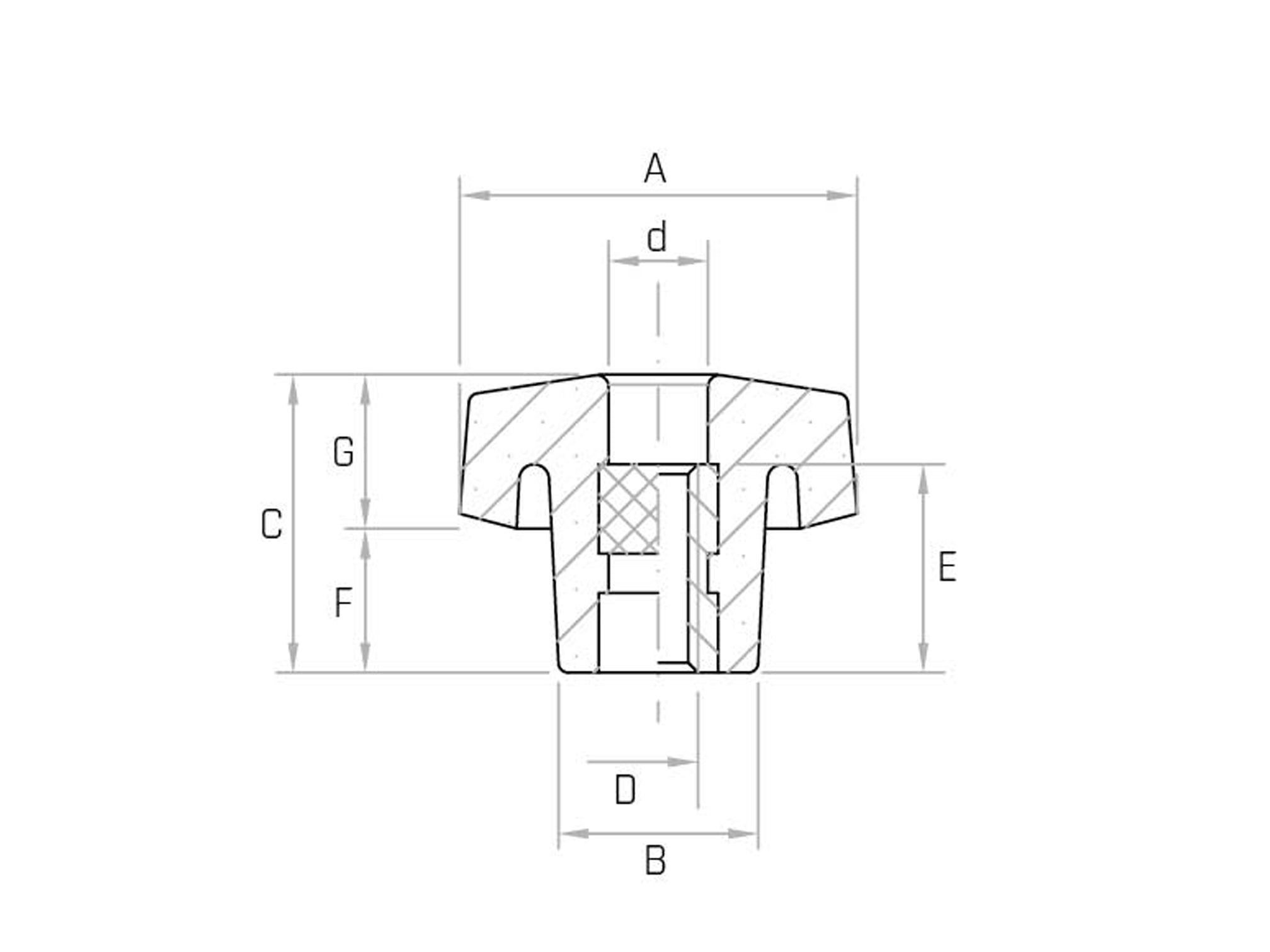

Code	Model	In mm	B mm	C mm	D	And mm	F mm	G mm	d mm	Weight gr.
6114025	VB/40/FP M6	40	21	28	M6	18	13	15	Ø11	28
6114030	VB/40/FP M8	40	21	28	M8	18	13	15	Ø11	29
6114035	VB/40/FP M10	40	21	28	M10	18	13	15	Ø11	31
6114040	VB/50/FP M8	50	25	33	M8	18	15	18	Ø13	43
6114045	VB/50/FP M10	50	25	33	M10	18	15	18	Ø13	45
6114050	VB/50/FP M12	50	25	33	M12	18	15	18	Ø13	47
6114055	VB/60/FP M10	60	28	35	M10	25	15	20	Ø11	70
6114060	VB/60/FP M12	60	28	35	M12	25	15	20	Ø13	70
6114065	VB/60/FP M14	60	28	35	M14	25	15	20	Ø15	70
6114070	VB/60/FP M16	60	28	35	M16	25	15	20	Ø17	68
6114075	VB/70/FP M10	70	32	42	M10	25	21	21	Ø11	92
6114080	VB/70/FP M12	70	32	42	M12	25	21	21	Ø13	96
6114085	VB/70/FP M14	70	32	42	M14	25	21	21	Ø15	94
6114090	VB/70/FP M16	70	32	42	M16	25	21	21	Ø17	93
