VB - Six-lobe handwheel - Range

Name: VB - Six-lobe handwheel - Range
Brand: Gamm
SKU: 6113035
Price: 25.74 EUR
Availability: InStock
Rating: 5.0 (10 reviews)

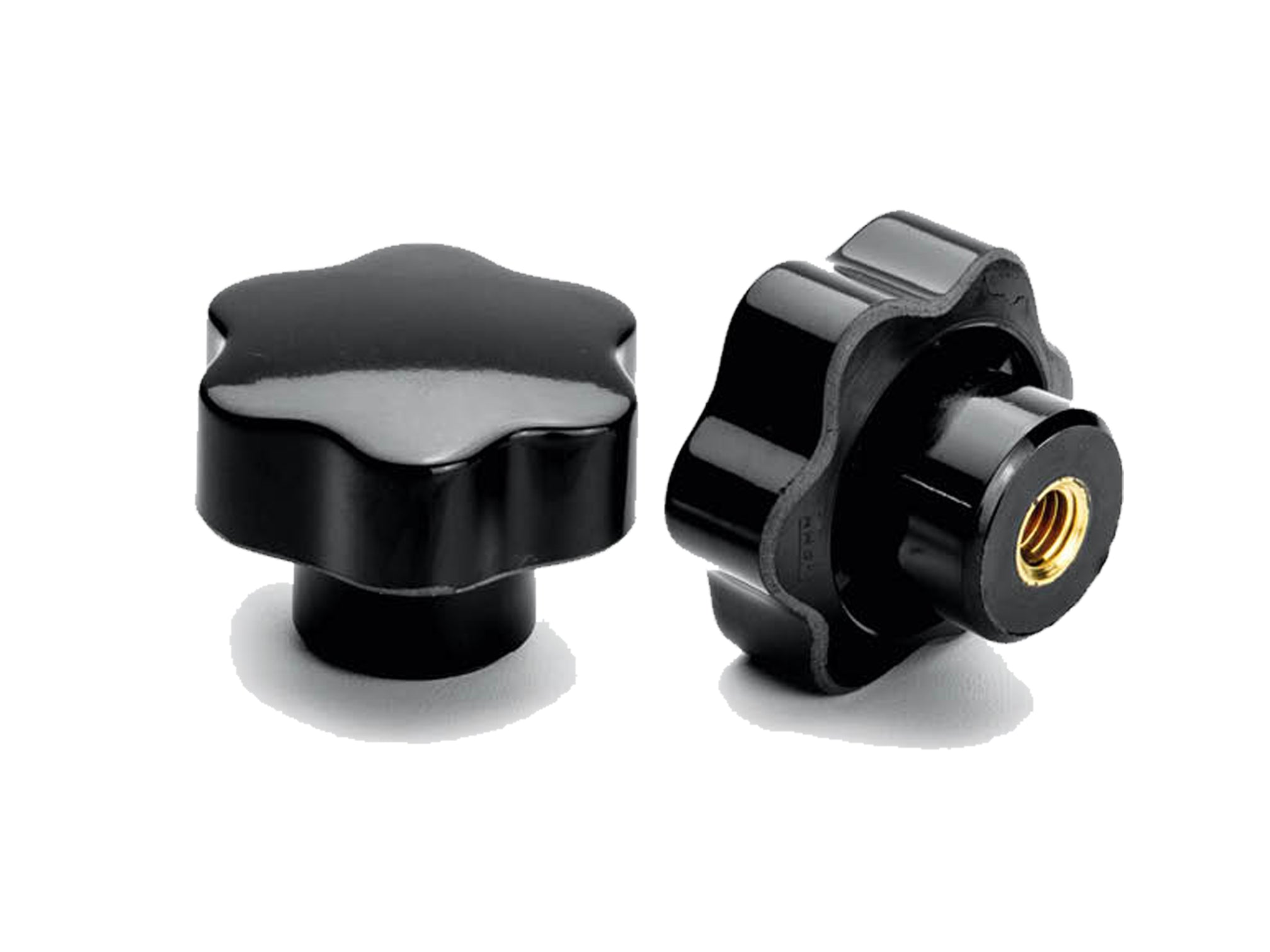

Locking handwheels with brass bushing and threaded blind hole, available in various sizes (from Ø40 mm to Ø90 mm). Made of black duroplast with six lobes (VB), compliant with REACH and RoHS regulations. Resistant to high temperatures thanks to phenolformaldehyde PF. Ideal for industrial applications.

Volantino a sei lobi

Product SKU: 6113035

€25,74

(IVA/VAT incl.)

€21,1 (IVA/VAT escl.)

Quantity

Pagamento dilazionato solo per acquisti online

Se preferisci accettiamo anche bonifico bancario o carte

Want it delivered by

Description
Specifications

Locking Flyers

Brass compass and threaded blind hole.

Material

Black Duroplast

VB - Six-lobed flyer

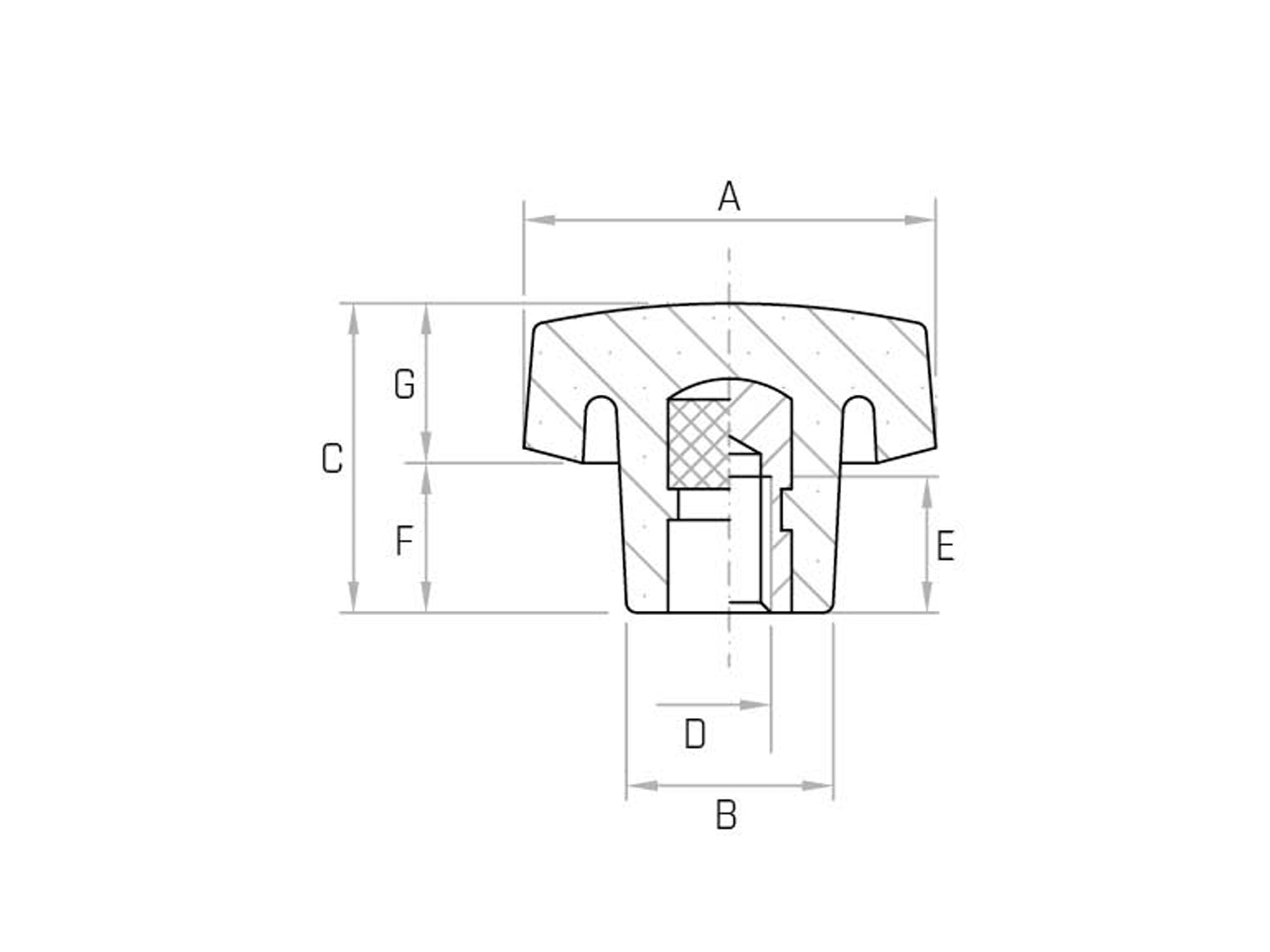

Code	Model	In mm	B mm	C mm	D	And mm	F mm	G mm	Weight gr.
6113035	VB/40 M6	40	21	28	M6	13	13	15	26
6113040	VB/40 M8	40	21	28	M8	15	13	15	30
6113041	VB/40 Ø8	40	21	28	Ø8	-	13	15	30
6113045	VB/40 M10	40	21	28	M10	16	13	15	31
6113050	VB/50 M8	50	25	33	M8	15	15	18	48
6113055	VB/50 M10	50	25	33	M10	16	15	18	49
6113060	VB/50 M12	50	25	33	M12	18	15	18	50
6113065	VB/60 M8	60	28	35	M8	15	15	20	67
6113070	VB/60 M10	60	28	35	M10	16	15	20	68
6113075	VB/60 M12	60	28	35	M12	18	15	20	70
6113080	VB/60 M14	60	28	35	M14	20	15	20	75
6113085	VB/60 M16	60	28	35	M16	20	15	20	77
6113090	VB/70 M10	70	32	42	M10	16	21	21	92
6113095	VB/70 M12	70	32	42	M12	18	21	21	95
6113100	VB/70 M14	70	32	42	M14	20	21	21	100
6113105	VB/70 M16	70	32	42	M16	20	21	21	102
6113110	VB/70 Ø6	70	32	42	Ø6	-	21	21	90
6113115	VB/70 Ø8	70	32	42	Ø8	-	21	21	92
6113120	VB/90 M12	90	42	55	M12	18	26	29	202
6113125	VB/90 M14	90	42	55	M14	20	26	29	201
6113130	VB/90 M16	90	42	55	M16	20	26	29	201
