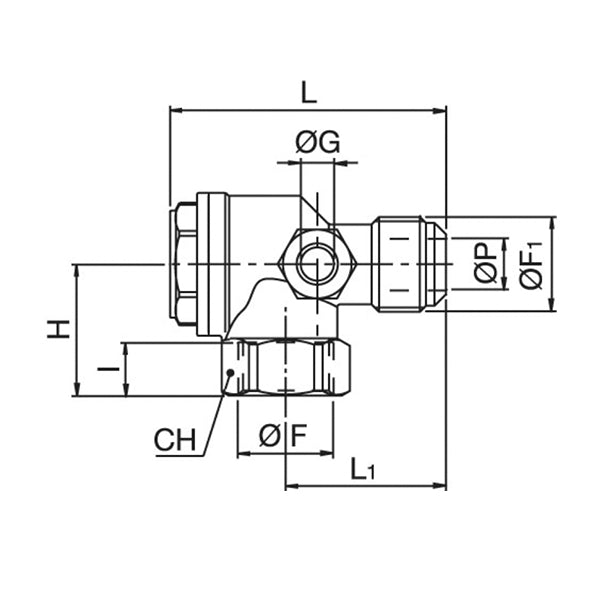

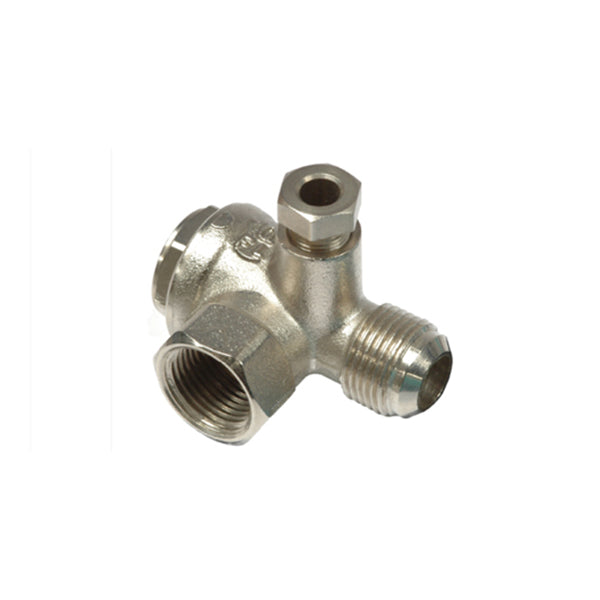

The 24/CL horizontal check valve is designed to provide excellent sealing in pneumatic applications, ideal for air compressor manufacturers. Made with male/female thread, this valve uses a VITON sealing element, resistant up to 200°C, offering high performance and reliability. Constructed from high quality brass (CW 614N and CW 617N), the valve is able to handle a nominal pressure of 16 bar. Surface nickel plating increases corrosion resistance, ensuring durability over time. Certified laboratory tests ensure that the valve meets the highest safety and performance standards, making it an excellent choice for those looking for reliability and quality in pneumatic applications. This valve is compliant with directive 2002/95/EC – RoHS.

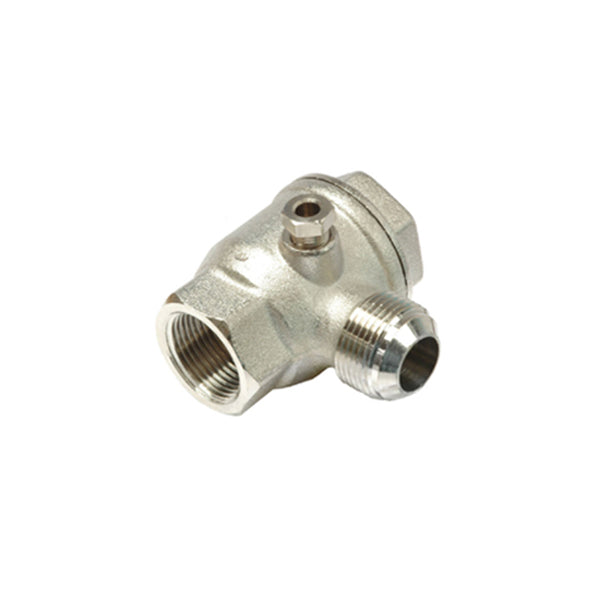

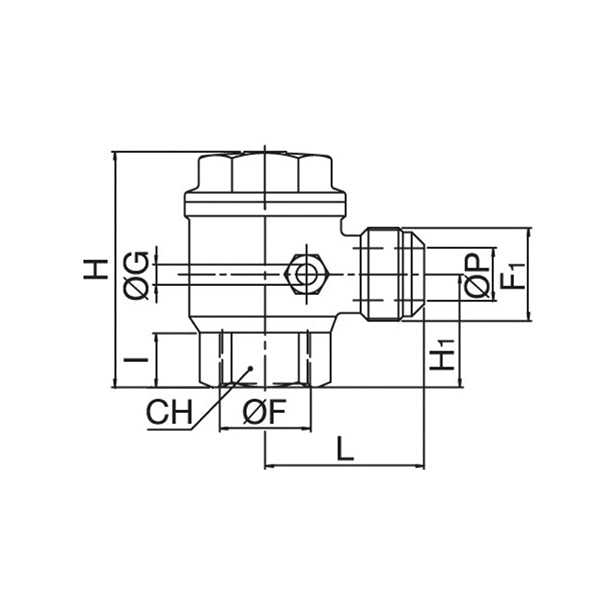

The 24/DP heavy duty vertical check valve is designed to provide exceptional performance in pneumatic applications, ideal for air compressor manufacturers. Featuring a male/female thread, it uses a VITON sealing element, resistant up to 200°C, to ensure excellent sealing. Manufactured from high quality brass (CW 614N and CW 617N), this valve supports a nominal pressure of 16 bar, ensuring durability and reliability. Surface nickel plating increases corrosion resistance, making the valve suitable for severe operating conditions. Certified laboratory tests confirm that the product meets the highest safety and performance standards. This valve complies with directive 2002/95/EC – RoHS.

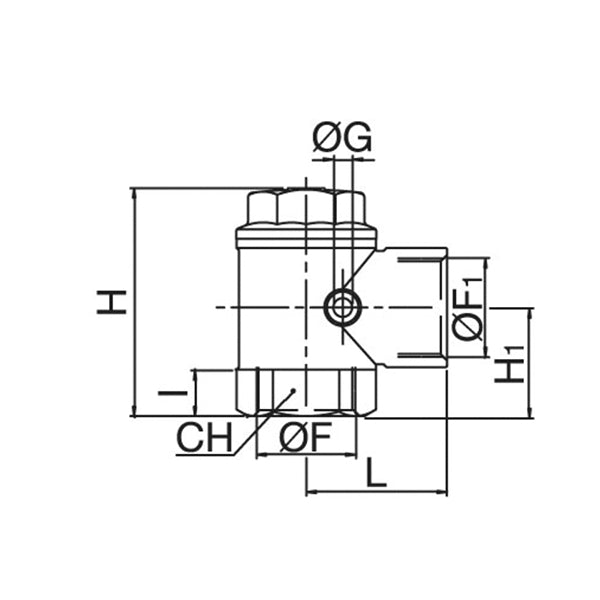

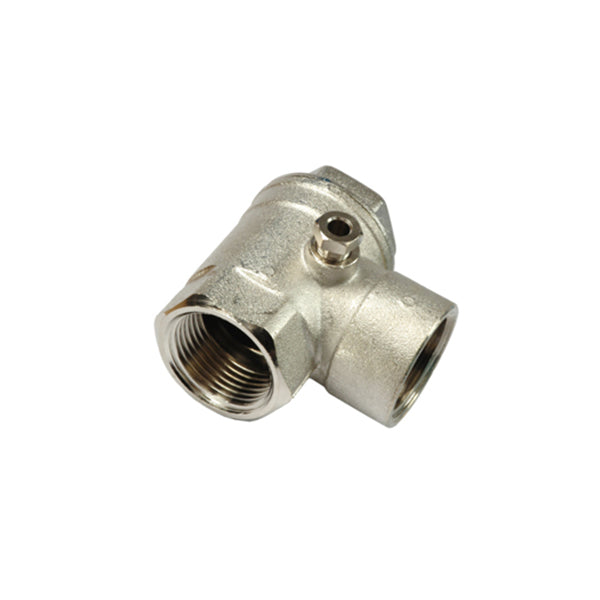

The 24/E vertical check valve is designed for pneumatic applications, offering excellent reliability for air compressor manufacturers. With female/female thread and a VITON sealing element, this valve withstands temperatures up to 200°C, ensuring effective sealing. Made of high quality brass (CW 614N and CW 617N), it supports a nominal pressure of 16 bar. Surface nickel plating increases corrosion resistance, while certified laboratory tests attest compliance with the most stringent safety standards. This valve complies with directive 2002/95/EC – RoHS.

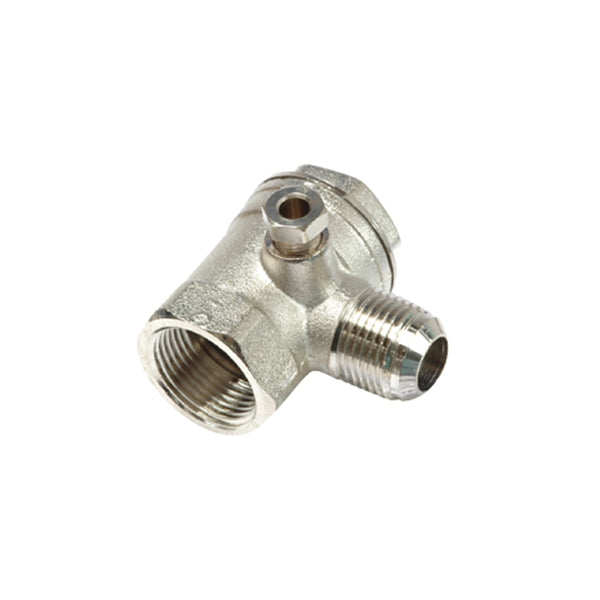

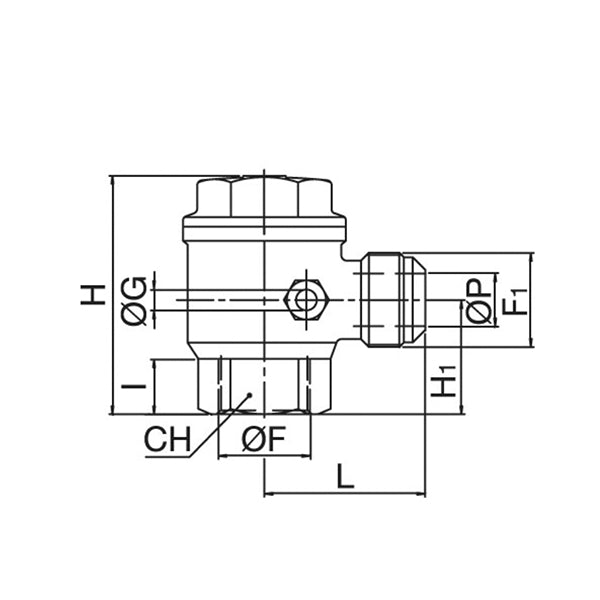

The 24, 24/C and 24/D vertical check valve is designed to provide reliable sealing in pneumatic applications, especially for air compressor manufacturers. With a male/female thread and a sealing element made of VITON or NBR, these valves offer resistance to high temperatures, up to 200°C for VITON and 130°C for NBR. Constructed from high-quality brass (CW 614N and CW 617N), they are designed to handle a nominal pressure of 16 bar. Surface nickel plating improves corrosion resistance and increases durability. The vertical configuration allows for efficient installation, while certified laboratory tests ensure the highest level of reliability. This valve is compliant with directive 2002/95/EC – RoHS, making it an ideal choice for applications requiring high performance and safety.
